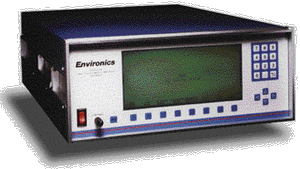

The Series 2000 dynamically produces complex mixes containing up to eight (8) individual component gases in a balance gas. Each component concentration may be independently varied in response to user commands. The Series 2000 can produce gas concentrations from percent levels to ppb for single or multi-point calibration of gas chromagraphs, process gas analyzers, mass spectrometers, FTIR's and other gas analytic devices.
The Series 2000 consists of a single chassis supporting up to nine (9) mass flow controllers, a serpentine pre-mix zone and a zero dead-space final mixing zone. Gas wetted surfaces are electro-polished 316 stainless steel. Seals are gas-compatible elastomer. User interface includes a backlit 80 character by 25 line liquid-crystal display and membrane keypad.
The instrument's mass flow controllers are factory calibrated using a primary flow standard traceable to the United States National Institute of Standards and Technology (NIST). The calibration data consists of an eleven-point comparison of commanded versus actual flow with linear interpolation between the points.
The Series 2000 is available in either a standard rack mount or bench top configuration. The optional RS-232 serial data interface permits remote or computer operation of the instrument
