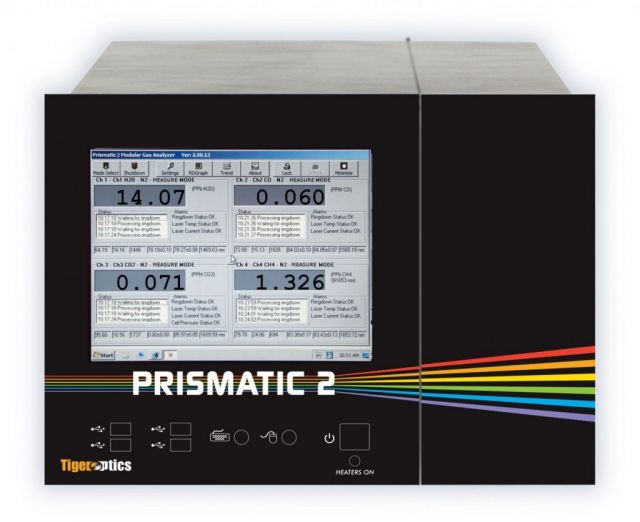

The Prismatic 2 is a multi-species analyzer capable of monitoring up to four trace molecules in a single gas stream. It is an ideal solution for applications that require the simultaneous analysis of multiple analytes in real-time, for instance, quality control of fuel-cell grade hydrogen or monitoring of unmanned ASUs.

Like the original Prismatic, the new Prismatic 2 is a single analyzer that can measure trace levels of as many as 16 different molecules with Tiger Optics' field-proven technology, known as Continuous Wave Cavity Ring-Down Spectroscropy (CW CRDS). The new Prismatic 2 will continue the trend of innovation, environmentally "green" attributes, and other cost and quality considerations for which the brand is known.

This instrument allows a wide variety of analyte combinations.  One standard configuration provides simultaneous detection of trace level carbon monoxide (CO), carbon dioxide (CO2), methane (CH4) and moisture (H2O).

Documentation

Prismatic 2 Brochure Prismatic 2 Brochure
Fuel Cell Hydrogen Purity Analysis Fuel Cell Hydrogen Purity Analysis
Specifications Summary Primatic 2 Specifications Summary Primatic 2
Big Physics Big Physics
