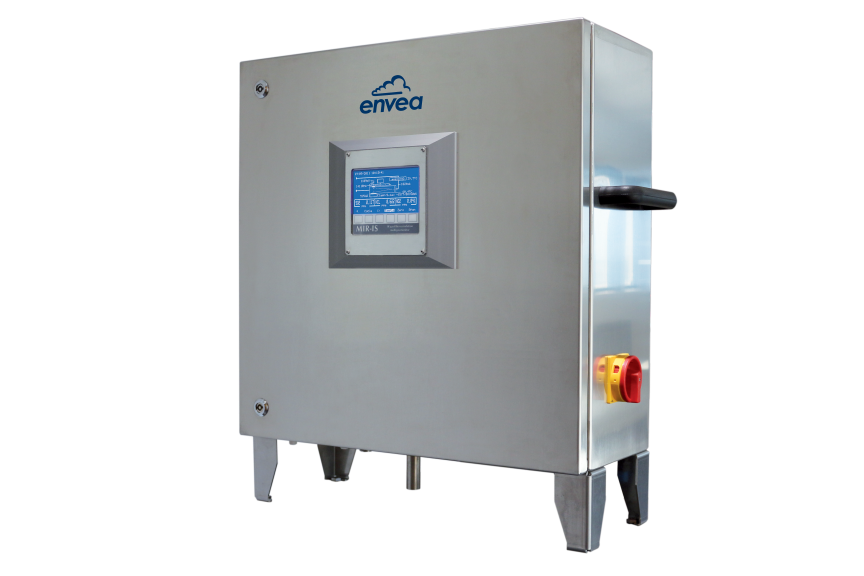

In-situ Close-coupled Multi-Gas Analyzer MIR IS
A complete “all in one compact” system, for multi-gas measurements, based on the field-proven MIR 9000 analyzer and on-board SEC sampling system
Fast & simultaneous measurement of up to 10 gases among: HCl, NO, NO2 (NOx), SO2, CO, CO2, HC, CH4 (TOC), HF, N2O, O2, at the sampling location
• Integrated sample drying & system conditioning; no sample line necessary
Features & Benefits
- Robust analyzer with a stainless steel enclosure
- Designed for measuring wet & corrosive samples
- Ease of installation (single stack entry, on-stack or close-coupled) for reduced costs
- Flow, Temperature & Pressure parameters (optional)
- Remote control and display functions
- Graphic LCD screen with real time synoptic
- Intrinsic security with on-board residual H2O measurement
- On-board paramagnetic cell for long term O2 measurement
- Fast response time, with automatic cross interference correction
- Robust and reliable short extractive analyzer with built-in permeation sample drying system for the measurement of wet and corrosive sample
- Complete CEMS in one cabinet – combines infrared analyzer, sample conditioning
- system and probe into one device
- Highly accurate; excellent calibration stability with automatic optical check
- Heated probe in different materials and lengths to suit the application
- External signal input for up to 5 additional measurements (flow rate, pressure, gas temperature…) or any other analog input
Main applications
- Industrial Boilers and Furnaces, Chemical and Petrochemical Plants
- Incineration, Co-generation, Gas Turbines, Power Plants
- Process Control, Pre/post Scrubber Measurements
- Coal / Oil / Gas Fired Combustion Monitoring
- CHP Combustion Monitoring
| Measurable parameters |
| Pollutant |
Range |
| HCI |
0-15 / 5000 |
| HF |
0-20 / 300 |
| NO |
0-100 / 5000 |
| NO2 |
0-100 / 1000 |
| N2O |
0-20 / 1000 |
| NOx |
0-200 / 5000 |
| SO2 |
0-75 / 5000 |
| CO |
0-75 / 5000 |
| CH4 |
0-10 / 1000 |
| THC |
0-50 / 5000 |
| CO2(%) |
0-10 / 100 |
| O2(%) |
0-10 / 25 |
Lowest / Highest available ranges expressed in mg/m3 (may vary with your site conditions to be indicated on the Site Survey Form)
| Technical Specifications |
| QAL1 to EN 15267-3 certified |
YES |
| US EPA compliance |
YES |
| Sampling technology |
In-Situ |
| Sample transfert |
N/A |
| back flush function |
YES |
| span injection |
YES at sample point |
| Built-In O2 option |
YES |
| Serial link communication |
RS232 / RS422 |
| Other Communication |
Ethernet |
| Analogue OUTPUTS |
YES (x 8) |
| Analogue INPUTS |
YES (x 4) |
| Dimensions (mm) |
SS Tight box: 200 x 600 x 600 (D x W x H) |
Approvals & Certifications
- COMPLIANCE WITH WID AND LCPD APPLICATIONS
- QAL 1 certified by the MCERTs to EN 15267-3
- MCERTs QAL 1 certified gas monitor
- Sira MC 040030/09
- QAL3 compliance as defined by EN 14181
- U.S. EPA approved as compliant with 40 CFR 60 ET 75
